Mesh with Grill Door Manufacturers in Coimbatore | Secure and Stylish Designs
Home \ Products

Mesh with Grill Door

Our Products

Mesh with Grill Door

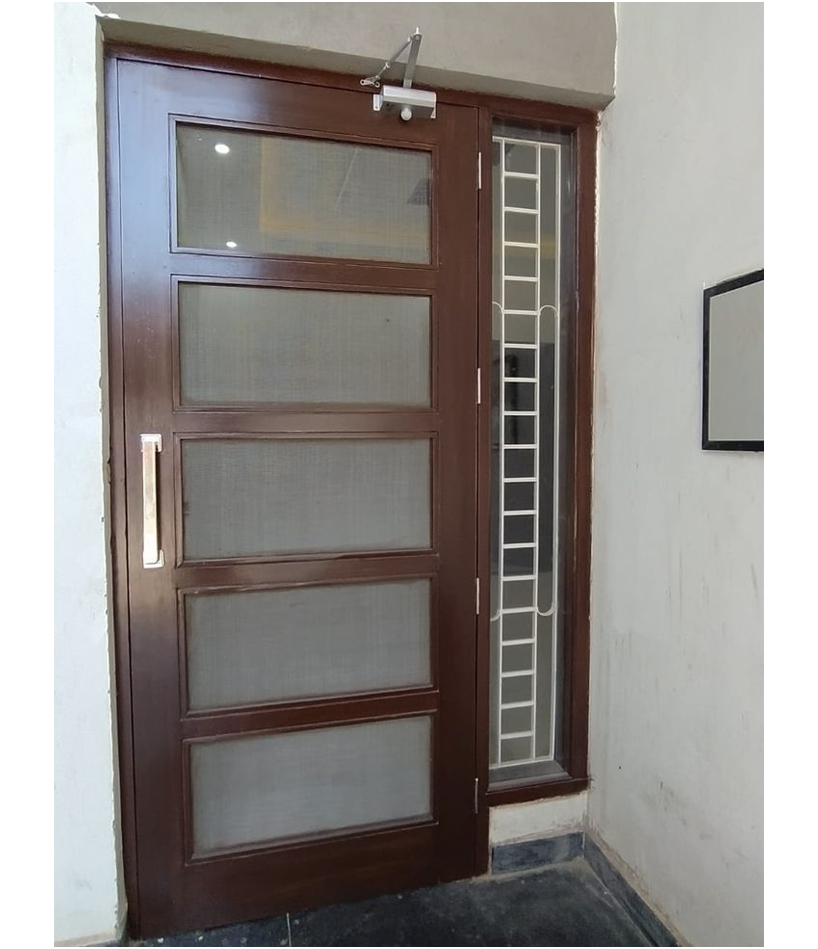

Peveeta's hardened wire mesh with grill doors are a specialized type of security door designed to provide enhanced protection for residential properties while also allowing for ventilation and visibility. These doors combine the strength of a solid metal frame with the transparency and airflow benefits of a wire mesh and grill design.

The mesh helps to keep insects and pests out while still allowing air and light to enter, making it a practical choice for areas with a lot of bugs. Made from high-quality materials, these doors are built to withstand weather elements and wear over time, ensuring long-lasting use.

Specifications :

frame
Material GI
Sheet Thickness 1.2MM – 1.6 MM
Profile Size Without Architrave 100 X 58 mm ,
150 X 58 mm
Profile Size With Architrave 100 X 78 mm ,
150 X 78 mm
Profile Type Double Rebate
Architrave And Threshold Optional
DOOR SHUTTER
Material GI
Sheet Thickness 0.8 MM – 1.0MM
Door Leaf Thickness 46 mm
Infill HONEYCOMB
Standard Fire Rating ( Max - 60 Min ) AVAILABLE
Standard Acoustic Rating 30 DB
APPLICATION SI NO WALL OPEN SIZE IN mm SHUTTER SIZE IN mm WALL OPEN SIZE IN FT - IN
SINGLE LEAF DOORS WITH SINGLE AND DOUBLE MESH DOORS
1 1050 X 2100 954 X 2043 3' 5.3" X 6' 10.6"
2 1050 X 2400 954 X 2343 3' 5.3" X 7' 10.5"
3 1200 X 2100 1104 X 2043 3' 11.3" X 6' 10.6"
4 1200 X 2400 1104 X 2343 3' 11.3" X 7' 10.5"

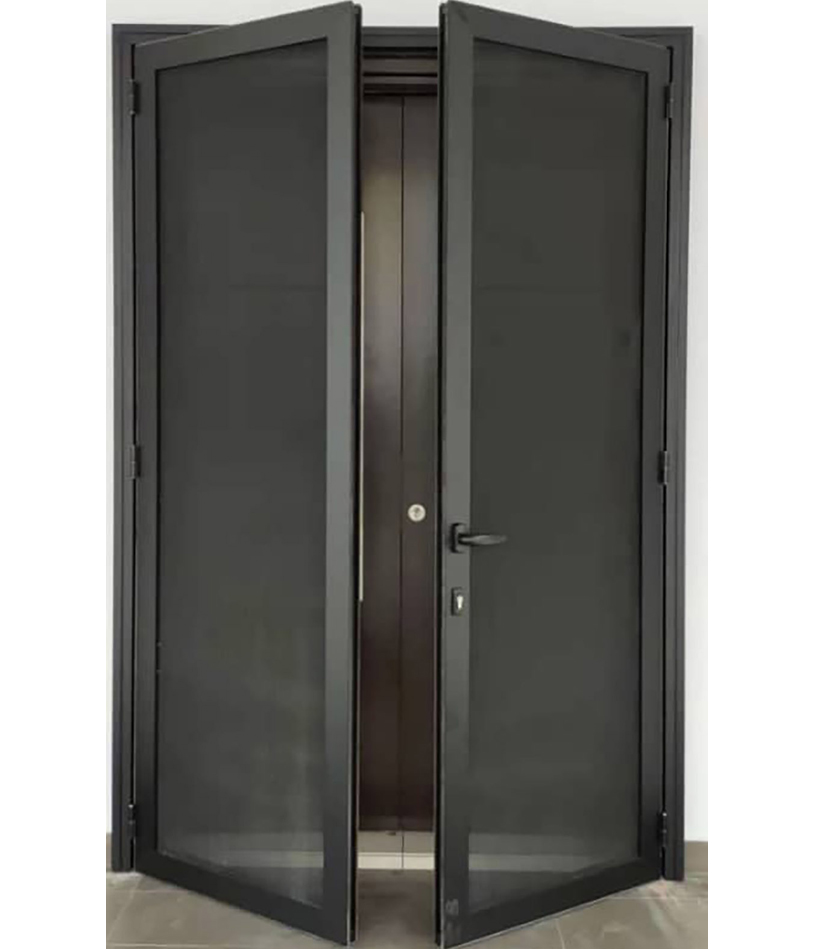

DOUBLE LEAF DOORS WITH SINGLE AND DOUBLE MESH DOORS
1 1200 X 2100 1104 X 2043 3' 11.3" X 6' 10.6"
2 1200 X 2400 1104 X 2343 3' 11.3" X 7' 10.5"
3 1350 X 2100 1254 X 2043 4' 5.15" X 6' 10.6"
4 1350 X 2400 1254 X 2343 4' 5.15" X 7' 10.5"
5 1500 X 2100 1404 X 2043 4' 11.0" X 6' 10.6"
6 1500 X 2400 1404 X 2343 4' 11.0" X 7' 10.5"
